THT is the abbreviation of the English term “Through Hole Technology”. THT assembly is always used when wired components are inserted into through-hole plating on the PCB and then connected to the PCB by a soldering process. THT is another technology besides SMD assembly, in which components are applied to the top of the PCB.

The advantages of THT assembly

Although SMT assembly has become increasingly important in recent years, THT assembly remains indispensable. THT assembly creates a strong connection between the components and the PCB. This makes them ideal for larger components – such as transformers and semiconductors – that are exposed to high power, high voltages and mechanical stresses.
Since the components are literally pushed through the PCB, they withstand environmental stresses more reliably. THT components are also easily interchangeable, which is optimal for prototyping and testing.

We carry out all preparatory work from careful component preparation to precise soldering

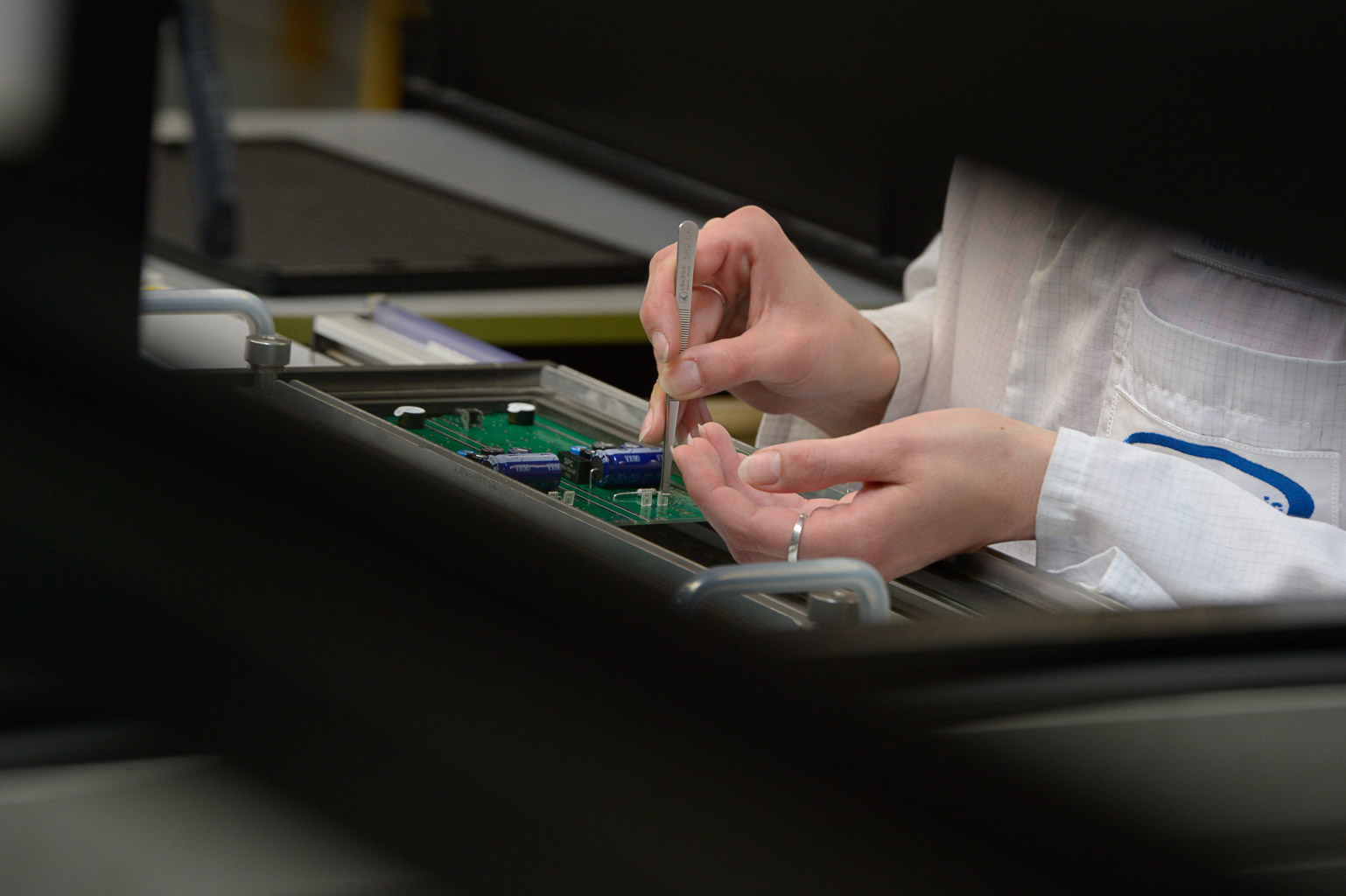

In order for us to be able to install all components, manual component preparation is often still necessary for THT assembly. Our employees adjust the wires of the components to the exact length and shape. We shorten, bend or bead the wires if necessary in order to optimally install the component on the PCB for its intended purpose.

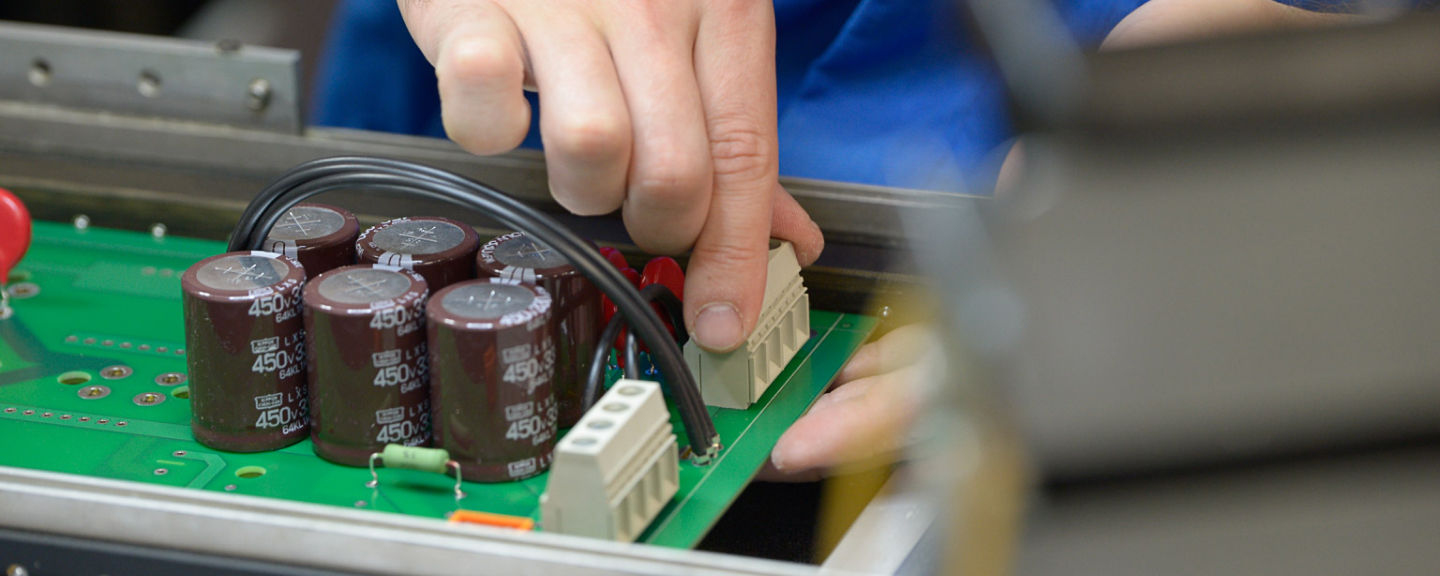

A printed circuit board is assembled by hand with THT components

The right soldering process for your PCBs in THT assembly

THT assembly is through-hole plating, which creates a vertical electrical connection between the track levels and the PCB. The connection is usually realised by an internally metallised hole in the carrier material of the PCB. The wires of the components are inserted through these holes. They are then soldered to the underside. We have three different soldering processes for this.

1. Wave soldering machine

The boards travel through the wave soldering machine in a special soldering frame – this triggering the respective soldering programme by means of a transponder. The solder bubbles past the underside of the board. It wets the underside, but only adheres to the pins and ensures permanent contact after cooling. So with the wave soldering machine we can solder a complete PCB in seconds. Wave soldering is also very reliable. Combined with speed, this feature makes wave soldering ideal for large-scale PCB assembly. A wave soldering machine consumes small amounts of solder because the solder is reused.
We use our ERSA wave soldering system for soldering with leaded or lead-free solder.

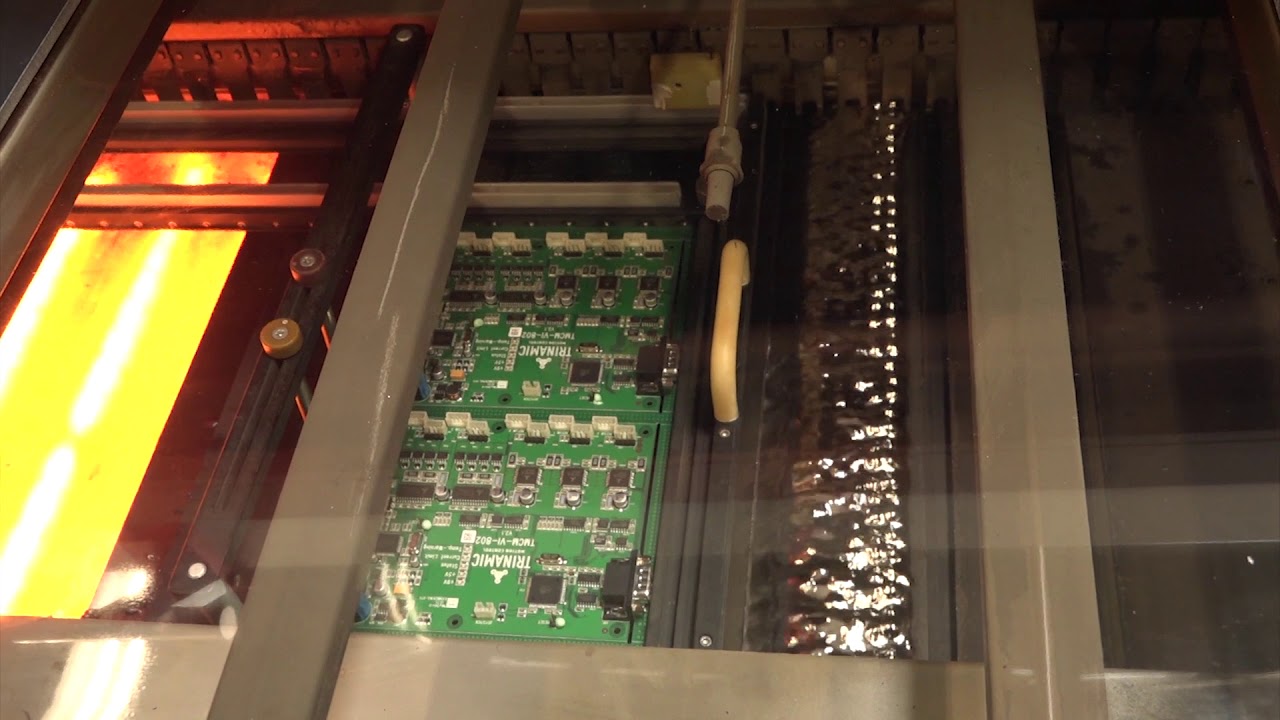

Eine Leiterplatte, die in der THT-Lötwelle verlötet wird

To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Google - Privacy & Terms

2. Selective soldering system

In the selective soldering system, the solder is dispensed from a small nozzle. This automatically moves under the PCB and applies solder joints at defined points. The closer the distances between the components, the smaller the solder nozzle must be. The distance from SMD components to THT solder joints should be at least 2.5 millimetres for machine selective soldering. Our ERSA selective soldering systems are equipped with 1-crucibles or 2-crucibles for lead-free solder. Selective soldering usually works in three steps:

  1. Apply flux. A flux improves the wetting of a pin to be soldered and removes any oxide layers that may have formed. The flux also reduces the interfacial tension.
  2. Preheating and PCB assembly. Preheating helps to optimise the soldering process and avoids thermal shock.
  3. The actual soldering with a solder nozzle. This is adapted to the specific requirements of the board.

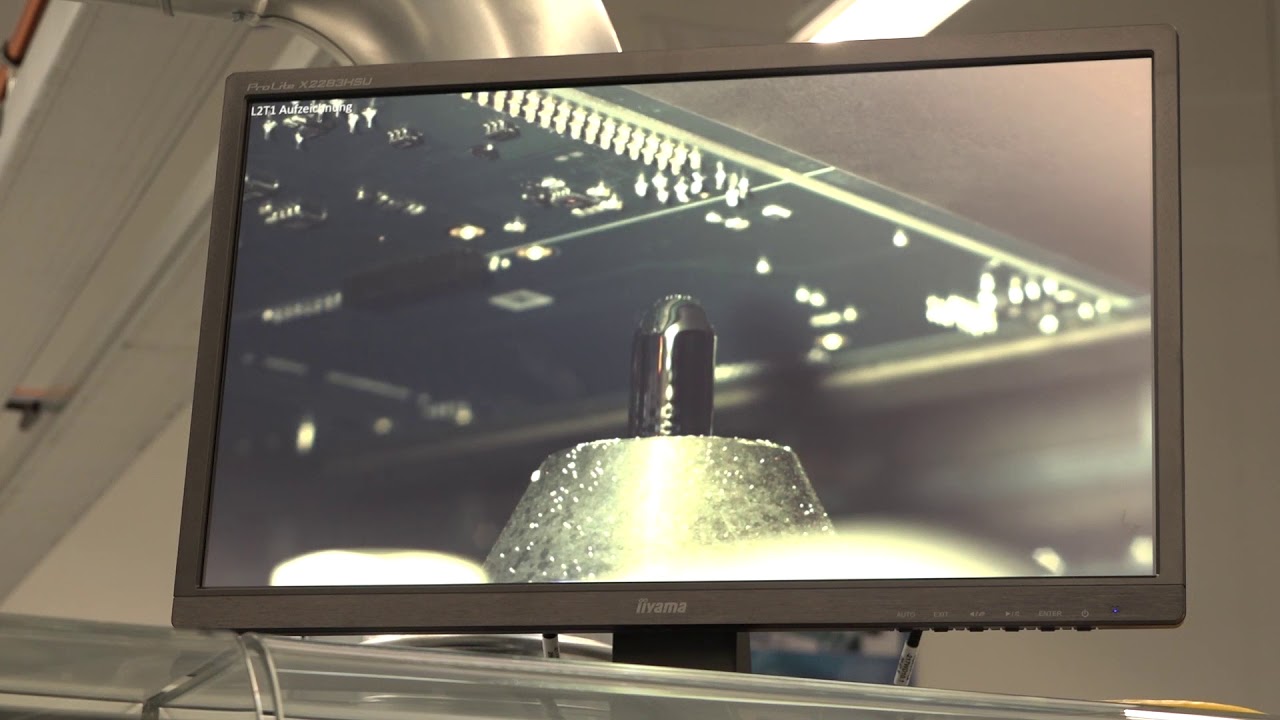

Ein Bildschirm, der einen Ausschnitt aus dem Prozesse des selektiven Lötens anzeigt

To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Google - Privacy & Terms

Here you will find a deep insight into the processes and the advantages and disadvantages of selective soldering.

Are you looking for an EMS service provider as first or second source?

Call us at

+49 4487 9283 11

Contact now

3. Hand soldering

In some cases, our employees also solder by hand. This is the case, for example, if the number of pieces is small. This saves us the initial costs of automation. We also solder temperature-sensitive components such as batteries or cables by hand. Moreover, manual soldering supports machine selective soldering if components have already been applied to the underside using the SMD process.
All our soldering processes take place using inert gas. We use nitrogen for this, which displaces the oxygen and thus prevents unwanted oxidation. The advantage: You get a visually and technically flawless soldering result.

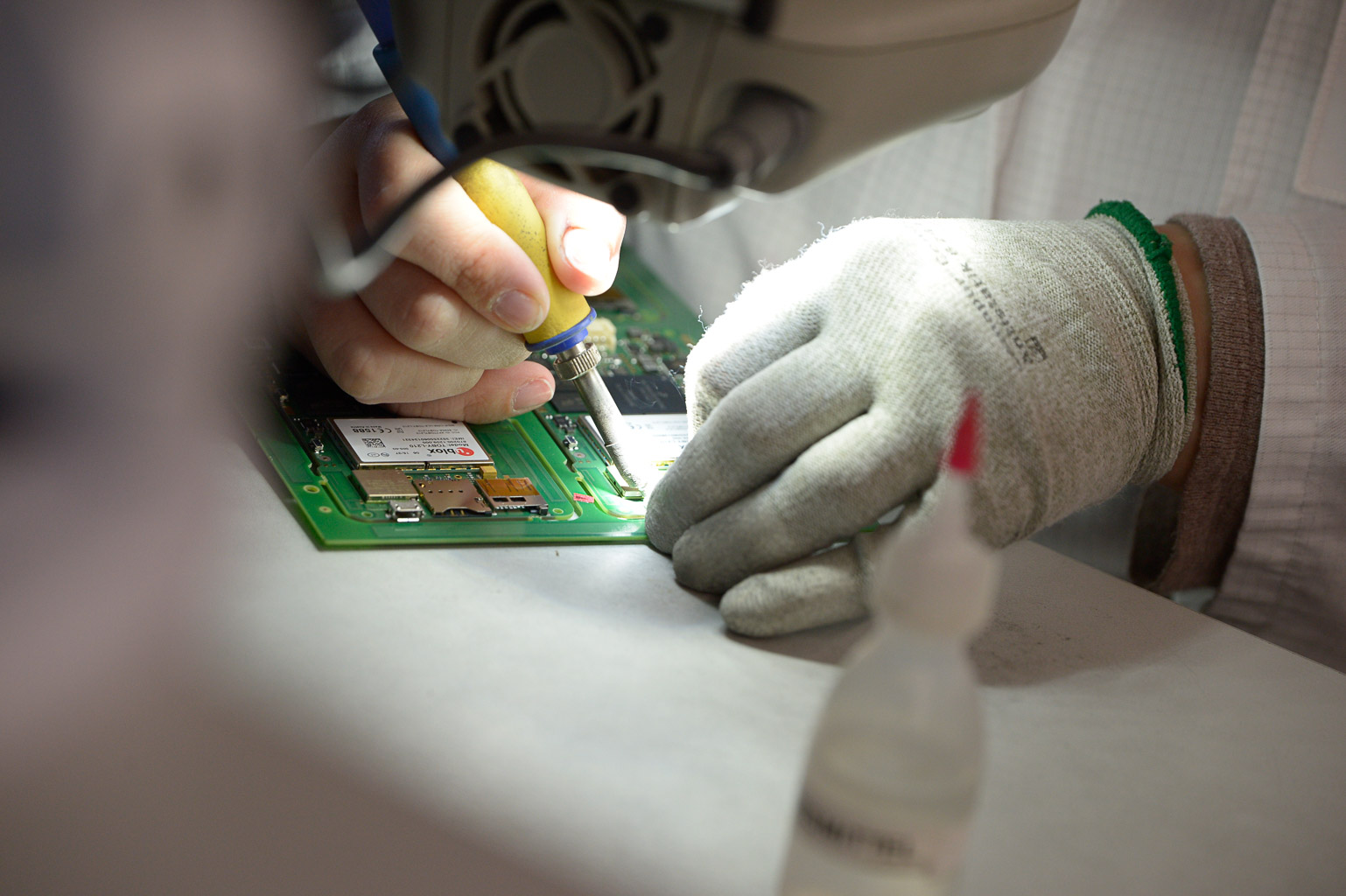

Eine Leiterplatte mit THT-Bauteilen wird manuell gelötet.
